Flutter构建一个透明背景的Widget

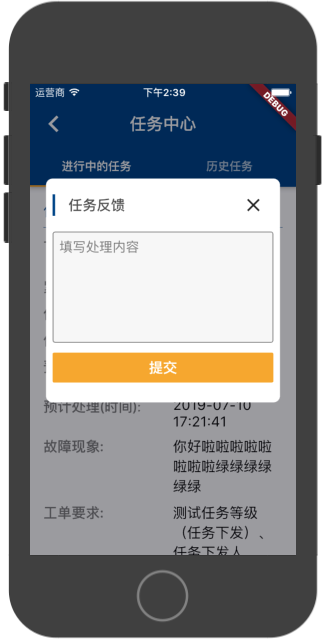

想做一个如下图这样透明背景的widget,但是正常push出来的,在最根部的Container设置成Colors.transparent,页面也不是透明的。 本文记录的是造出来这个页面的历程;看代码的直接点这里 img

1. 先展示出来

经过不懈努力,终于试出来一个方法(真的是试出来的😢😢):

 showCupertinoModalPopup(
    context: context,
    builder: (_) => FeedBackPage()
 );

使用这个方法push出来的页面,默认就是透明背景的。当然,这个Cupertino对应的Material方法是:

showDialog(
    context: context,
    builder: (_) => FeedBackPage()
);

但是showDialog比showCupertinoModalPopup出来的页面要低一点,而且showCupertinoModalPopup默认的动画更明显一点(本人太菜,还不会手写动画🌚🌚):

onPressed: () {
   showCupertinoModalPopup(context: context, builder: (_) => FeedBackPage());
   showDialog(context: context, builder: (_) => FeedBackPage());
},


2.在show出来的widget上添加东西

class _FeedBackPageState extends State<FeedBackPage> {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        color: Colors.white,
        width: 300,
        height: 300,
        child: Center(
          child: Text("这里是文字啊"),
        ),
      ),
    );
  }
}

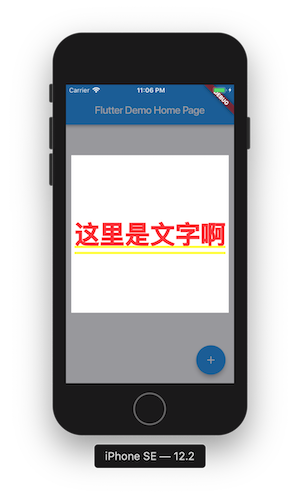

首先把代码写成这个样子,先只是展示一个Text,出来的是这个样子。 💢💢这什么玩意,我没有对Text进行任何设置,怎么就有样式了。我观望flutter半年的,一般情况下,加上一个Scaffold就能解决问题;结果呢,加上Scaffold之后就不会是透明的了,不信你试试。


先不管这个,直接再添加一个TextField上去:

class _FeedBackPageState extends State<FeedBackPage> {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        color: Colors.white,
        width: 300,
        height: 300,
        child: Column(
          children: <Widget>[
            Text("这里是文字啊"),
            TextField()
          ],
        ),
      ),
    );
  }
}

然后,em…噩梦👿👿


按照我开发flutter两周的经验,这个错误还是可以通过加一个Scaffold解决。💢💢 这时的控制台:

flutter: The following assertion was thrown building TextField(dirty, state: _TextFieldState#c1f8e):
flutter: No Material widget found.
flutter: TextField widgets require a Material widget ancestor.
flutter: In material design, most widgets are conceptually "printed" on a sheet of material. In Flutter's
flutter: material library, that material is represented by the Material widget. It is the Material widget
flutter: that renders ink splashes, for instance. Because of this, many material library widgets require that
flutter: there be a Material widget in the tree above them.
flutter: To introduce a Material widget, you can either directly include one, or use a widget that contains
flutter: Material itself, such as a Card, Dialog, Drawer, or Scaffold.
flutter: The specific widget that could not find a Material ancestor was:
flutter:   TextField

看了控制台,心情舒爽多了;

To introduce a Material widget, you can either directly include one, or use a widget that contains Material itself, such as a Card, Dialog, Drawer, or Scaffold.

这里的such as,除了Scaffold,还是有Card,Dialog,Drawer;很显然,Card很适合我们😄😄(虽然Card可能不是这么用的,但是,反正能这么实现);于是改代码,顺便调整一个嵌套结构,加了一个close按钮:

class _FeedBackPageState extends State<FeedBackPage> {
  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        color: Colors.white,
        width: 300,
        height: 300,
        child: Card(
          child: Column(
            children: <Widget>[
              Text("这里是文字啊"),
              TextField(),
              IconButton(
                icon: Icon(
                  Icons.close,
                  size: 35,
                ),
                onPressed: () => Navigator.pop(context),
              )
            ],
          ),
        ),
      ),
    );
  }
}

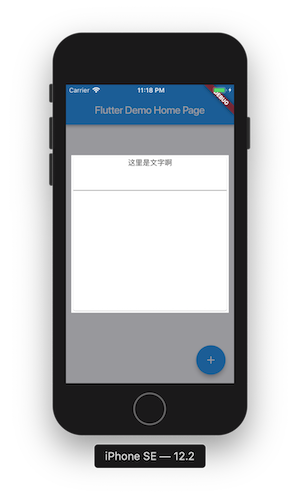

这时候界面是这样的:


嗯,界面忽然就可爱多了🐶。

3.下一步,以为可以处理细节了:

TextField设置多行,此时键盘上默认的是换行,所以加一个失去焦点的方法,同时在最外层套一个GestureDetector

class _FeedBackPageState extends State<FeedBackPage> {
  TextEditingController contentController = TextEditingController();

  @override
  Widget build(BuildContext context) {
    return GestureDetector(
      onTap: ()=> endEditing(),
      child: Center(...),
    );
  }

  endEditing() {
    FocusScope.of(context).requestFocus(FocusNode());
  }
}

这时,无意间点了透明的地方,这个玩意自己pop了😭😭。无奈,在最外层又添加了一个全屏的透明的Container:

class _FeedBackPageState extends State<FeedBackPage> {
  TextEditingController contentController = TextEditingController();
  @override
  Widget build(BuildContext context) {
    return GestureDetector(
      onTap: ()=> endEditing(),
      child: Container(
        color: Colors.transparent,
        child: body(),
      ),
    );
  }

这样,点起来看似舒服多了;

在公司写的时候,无意间发现,点击屏幕边缘的时候,还是会自动的pop,但是重新写一遍就没了????[黑人问号脸.jpg] 如果你遇到了,可以在最外层添加一层Material,并设置type为MaterialType.transparency,如果没遇见,当我没说..溜了溜了。

4.下一个内容

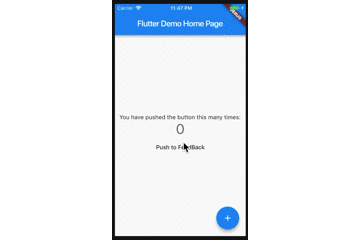

接下来就是键盘遮挡TextField的问题了,理想状态应该是,键盘弹出来之后,白色的widget是可以上下滑动的,但是没有实现出来🌚🌚;只是加了一个bottom的Margin,让Card在中心靠上的合适位置显示了;等实现了再更新吧。 最后的效果和代码gif
